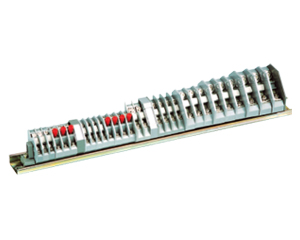

ENJH5(TZ1)系列組合型接線端子
| 概述 是TZ1端子的更新產品，絕緣材料采用阻燃聚碳酸酯、梯度三角外形，金屬件采用導電片組合螺釘壓接技術，上下結構，額定工作電壓660V，適用于 0.75～25mm2 的壓接端頭導線，特別適用于安裝在電器控制柜下部，便于接線和連接維護。 結構特征尺寸 |
|
|
|
|
|
|
| 型號規格 | 外形尺寸mm | 連接導線范圍mm2 | 額定電流A | 配用端頭 | |||
| B |
H | 厚 | 外形圖 | ||||
|
JH5-1.5 |
39 | 52 | 8 | 1 | 0.5-1.0-1.5 | 17.5 | TU1-1/3 TO1-1/3 TU1-1.5/3TO1-1.5/3 |
| JH5-1.5L | 47 | 8 | 2 | ||||
| JH5-1.5T | 52 | 10 | 3 | ||||
| JH5-1.5TL | 52 | 10 | 4 | ||||
| JH5-1.5S | 52 | 8 | 3 | ||||
| JH5-1.5B | 39 | 52 | 10 | 5 | |||
| JH5-1.5G | 1.5 | 6 | |||||
| JH5-2.5 | 44 | 58 | 10 | 1 | 1.0-1.5-2.5 | 24.0 | TU1-1/4 TO1-1/4 TU1-1.5/4 TO1-1.5/4 TU1-2.5/4 TO1-2.5/4 |
| JH5-2.5L | 51.5 | 2 | |||||
| JH5-2.5B | 44 | 58 | 10 | 5 | |||
| JH5-2.5G | 1.5 | 6 | |||||
| JH5-10 |
63 | 73 | 15 | 1 | 2.5-4.0-6.0 | 41.0 | TU1(TO1)-2.5/6 4/6 6/6 |
| JH5-6G 10G | 18 | 4.0-6.0-10.0 | 57.0 | TU1(TO1)-4/6 6/6 10/6 | |||
| JH5-25 | 63 | 73 | 2 | 6 | |||
| JH5-25G | 70 | 78 | 24 | 1 | 10-16-25 | 101.0 | TO1-10/8 16/8 25/8 |
| JH5-6 | 2.5 | 6 | |||||
