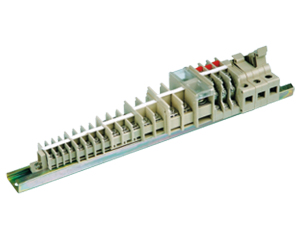

JH14系列組合型接線端子
概述 JH(JH6)系列組合型接線端子 絕緣件采用PC 聚碳酸酯阻燃,金屬件采用方框結構銅導體壓接技術,不會傷損導線,額定電壓交流660V、壓接 0.75~35mm2 的軟硬導線無需端頭可以連接。G型導軌安裝。 結構特征尺寸: |
|
|
|
|
|
|
型號 規格 |
外形尺寸mm | 連接導線 范圍 mm2 |
額定 電流A |
接線 螺釘 |
配用 端頭 | |||
B |
H | 厚 | 外形圖 | |||||
JH14-1.5 | 30 | 47 | 8 | 1 | 0.75-1.5 | 17.5 | 1.5 | TU1-0.5/3, TO1-0.5/3 TU1-1/3, TO1-1/3 TU1-1.5/3, TU1-1.5/3 |
JH14-1.5/2L | ||||||||
JH14-1.5/3L | ||||||||
JH14-1.5B |
31 | 28.5 | 11 | |||||
JH14-1.5G | 30 | 15 | ||||||
JH14-2.5 | 35 | 41.5 | 10 | 1 | 1-2.5 | 24 | 2.5 | TU1-1/4, TO1-1/4 TU1-1.5/4, TO1-1.5/4 TU1-1.5/3, TO1-1.5/3 |
JH14-2.5L | 2 | |||||||
JH14-2.5/2L | ||||||||
JH14-2.5/3L | ||||||||
JH14-2.5S | 60 | 65.5 | 3 | |||||
JH14-2.5S/2L | ||||||||
JH14-2.5S/3L | ||||||||
JH14-2.5B | 36 | 31.5 | 11 | |||||
JH14-2.5G | 35 | 1.5 | ||||||
JH14-2.5SG | 60 | |||||||
JH14-2.5RD | 65 | 48 | 17.2 | 4 | 2.5-4 | 24-41 | 4-2 | |
JH14-6 | 45 | 52 | 14 | 1 | 2.5-6 | 41 | 6 | TU1(TO1)-2.5/5, 4/5, 6/5 |
JH14-6G | 45 | 1.5 | ||||||
JH14-10 | 50 | 60 | 16.5 | 1 | 6-10 | 57 | 10 | TU1-6/6, TO1-6/6, 10/6 |
JH14-10G | 50 | 1.5 | ||||||
JH14-25 | 60 | 60 | 25 | 1 | 10-25 | 101 | 25 | TU1-10/8, 16/8, 25/8 |
JH14-25G | 60 | 2 | ||||||
JH14-50 | 72 | 65 | 28 | 10-50 | 150 | 60 | TU1-10/10, 16/10, 25/10 | |
JH14-50G | 72 | 2.5 |
